Use

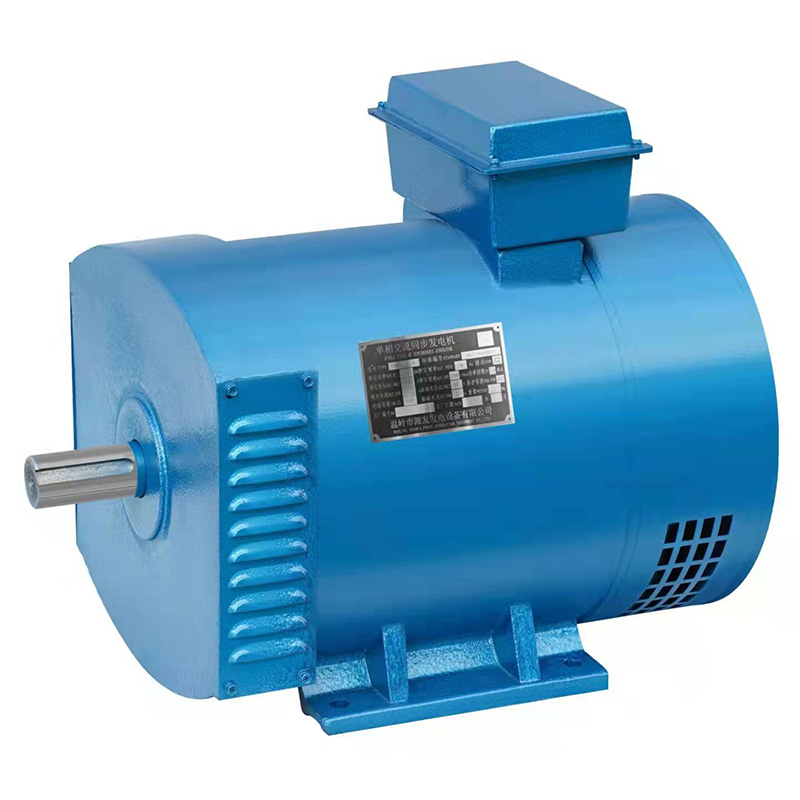

This series of generators is suitable for fishing boats and transport ships, engineering ships.
This generator structure system which has the advantages of simple structure，safety use, and easy maintenance.
Technical parameter
Size & Type | Rated Power | Rated Voltage | Rated Revolution | Frequency (Hz) | Current | Power Factor | Degree Class | Insulation Class | Wiring mode | Phase Number | Voltage regulation rate | Efficiency |
TYF-12-H | 12kw | 230V | 1500r/min | 50Hz | 51.2A | 0.8（lag） | IP22 | F/F | 匸 | Single | ≤±2.5 | 83.8 |
| TYF-15-H | 15kw | 230V | 1500r/min | 50Hz | 65.2A | 0.8（lag） | IP22 | F/F | 匸 | Single | ≤±2.5 | 84.0 |
TYF-20-H | 20kw | 230V | 1500r/min | 50Hz | 87.0A | 0.8（lag） | IP22 | F/F | 匸 | Single | ≤±2.5 | 84.3 |
